Stainless Steel Shackles
Manufactured in Japan by Mizumoto Machine Mfg. Co., Ltd.
Our supplier MIZKEN INC., the exporter affiliated with a leading manufacturer specialized in stainless steel products in Japan, offers a wide selection of high-quality stainless steel shackles in various types and sizes. As one of the most commonly used rigging hardware, each shackle features a sturdy body and a removable pin for quick and secure connections.
We provide two primary shackle types: D-shaped (Chain Shackles) and Anchor-pattern (Bow Shackles). Our lineup includes a variety of pin options, such as screw pin, round pin, rivet pin, key pin, safety pin, captive screw pin, and bolt. Additionally, we offer miniature shackles for accessories and ornaments, as well as specialized options like twisted shackles and snap shackles, designed for effortless one-handed operation. With this diverse range, you can find the perfect shackle for your specific application.
Our shackles are primarily made from 304 stainless steel, the most widely used stainless steel, and we also offer 316 stainless steel variants for superior corrosion resistance. With exceptional durability, high tensile strength, and resistance to harsh environments, our shackles are ideal for marine, industrial, and construction applications.
Backed by a strong legacy of reliability and quality, MIZKEN INC. takes pride in delivering stainless steel products trusted for their performance and durability.
Click the following images to see the details. Make inquiries with your required item code and quantity, and we quickly send you our quotation in return. Please read Safety Precautions before using the products.
Lineup of Shackles
-
Screw Pin Semi-Round D Shackle
304 Stainless Steel
5-8mm Shackle Pin
90-200kgf WLL -
Socket Button Head Screw Pin Semi-Round D Shackle
304 Stainless Steel
5-8mm Shackle Pin
90-200kgf WLL -
Round Pin Semi-Round D Shackle
304 Stainless Steel
5-8mm Shackle Pin
90-200kgf WLL -
Screw Pin Large Semi-Round D Shackle
304 Stainless Steel
5-8mm Shackle Pin
70-150kgf WLL -
Screw Pin Stamped D Shackle
304 Stainless Steel
4-8mm Shackle Pin
50-120kgf WLL -
Round Pin Stamped Shackle
304 Stainless Steel
5-6mm Shackle Pin
10-60kgf WLL -
Rivet Pin Stamped D Shackle
304 Stainless Steel
3-5mm Shackle Pin
20-50kgf WLL -
Rivet Pin Color Stamped D Shackle
304 Stainless Steel
3-5mm Shackle Pin
20-50kgf WLL -
Key Pin D Shackle
304 Stainless Steel
3-6mm Shackle Pin
20-120kgf WLL -
Micro D Shackle
304 Stainless Steel
2-3mm Shackle Pin
10-25kgf WLL -
Wide Micro D Shackle
304 Stainless Steel
2-3mm Shackle Pin
10-25kgf WLL -
Screw Pin D Shackle
304/316 Stainless Steel
4-35mm Shackle Pin
50-3,200kgf WLL -
Captive Screw Pin D Shackle
304 Stainless Steel
3.5-17mm Shackle Pin
40-860kgf WLL -
Square Head Screw Pin D Shackle
304 Stainless Steel
4-25mm Shackle Pin
50-2,000kgf WLL -
Slot Head Screw Pin D Shackle
304 Stainless Steel
4-35mm Shackle Pin
50-3,200kgf WLL -

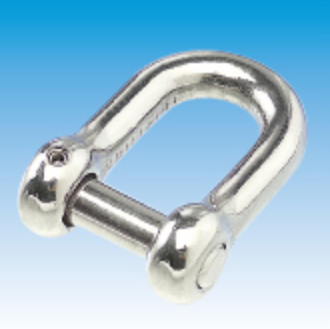

Slot Head Screw Pin D Shackle Fixable w/Hollow Screw
304 Stainless Steel
6-35mm Shackle Pin
170-3,200kgf WLL -
Slot Head Screw Pin D Shackle Fixable w/Locking Pin
304 Stainless Steel
6-25mm Shackle Pin
170-2,000kgf WLL -
Safety Pin D Shackle
304/316 Stainless Steel
6-35mm Shackle Pin
180-5,000kgf WLL -
Bolt D Shackle
304/316 Stainless Steel
6-35mm Shackle Pin
180-5,000kgf WLL -

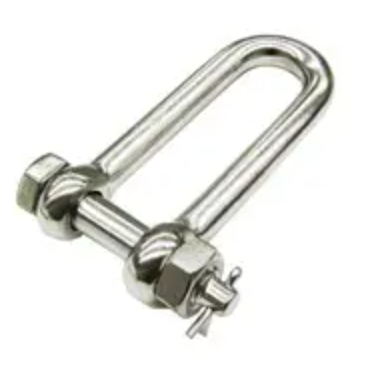

Safety Pin Long D Shackle
304/316 Stainless Steel
14-25mm Shackle Pin
900-3,200kgf WLL -
Screw Pin Long D Shackle
304 Stainless Steel
4-12mm Shackle Pin
50-420kgf WLL -
Slot Head Screw Pin Long D Shackle
304 Stainless Steel
4-12mm Shackle Pin
50-420kgf WLL -
Square Head Screw Pin Long D Shackle
304 Stainless Steel
4-12mm Shackle Pin
50-420kgf WLL -
Screw Pin Long D Shackle w/Nut
304 Stainless Steel
5-12mm Shackle Pin
100-505kgf WLL -
Screw Pin Twisted D Shackle
304 Stainless Steel
4-12mm Shackle Pin
50-420kgf WLL -
Slot Head Screw Pin Twisted D Shackle
304 Stainless Steel
4-12mm Shackle Pin
50-420kgf WLL -
Screw Pin Anchor Shackle
304 Stainless Steel
4-16mm Shackle Pin
50-800kgf WLL -
Slot Head Screw Pin Anchor Shackle
304 Stainless Steel
4-12mm Shackle Pin
50-420kgf WLL -
Safety Pin Anchor Shackle
304 Stainless Steel
6-16mm Shackle Pin
175-880kgf WLL -
Screw Pin Wide D Shackle
304 Stainless Steel
5-12mm Shackle Pin
70-340kgf WLL -
Safety Pin Large D Shackle
304/316 Stainless Steel
8-12mm Shackle Pin
300-450kgf WLL -
Screw Pin Large D Shackle
304 Stainless Steel
5-12mm Shackle Pin
70-340kgf WLL -
Bolt Large D Shackle
304 Stainless Steel
5-12mm Shackle Pin
90-400kgf WLL -
JIS D Shackle
304/316 Stainless Steel
8-30mm Shackle Pin
200-3,600kgf WLL -
Shackle Key
304 Stainless Steel
87mm Length -
Swivel Eye Snap Shackle
304 Stainless Steel
5-9mm Eye Wire Dia.
150-430kgf WLL -
Fixed Eye Snap Shackle
304 Stainless Steel
2.7-7mm Eye Wire Dia.
50-430kgf WLL -
Screw Pin Stamped D Shackle Wide Type
304 Stainless Steel
4-8mm Shackle Pin
30-135kgf WLL -
Screw Pin Stamped D Shackle Long Type
304 Stainless Steel
4-8mm Shackle Pin
50-120kgf WLL -
Screw Pin Semi-Round D Shackle Wide Type
304 Stainless Steel
5-8mm Shackle Pin
45-100kgf WLL -
Screw Pin Semi-Round D Shackle Long Type
304 Stainless Steel
5-8mm Shackle Pin
90-200kgf WLL -
Slot Head Screw Pin Semi-Round D Shackle Wide Type
304 Stainless Steel
5-8mm Shackle Pin
45-100kgf WLL -
Slot Head Screw Pin Semi-Round D Shackle Long Type
304 Stainless Steel
5-8mm Shackle Pin
90-200kgf WLL
Mizumoto’s rigging and marine hardware products are mainly made from 304 Stainless Steel. Some products are also available in 316 Stainless Steel. Mizumoto’s products are well-known in Japan for reliability and long history of achievements.
As the authorized agent for Mizumoto in the United States, we proudly represent Mizumoto’s esteemed line of stainless steel marine hardware. We coordinate the entire supply chain process, from sample approval to production schedules to logistics and timely delivery. We are the go-to source for Mizumoto’s world-class marine hardware solutions in the United States.
